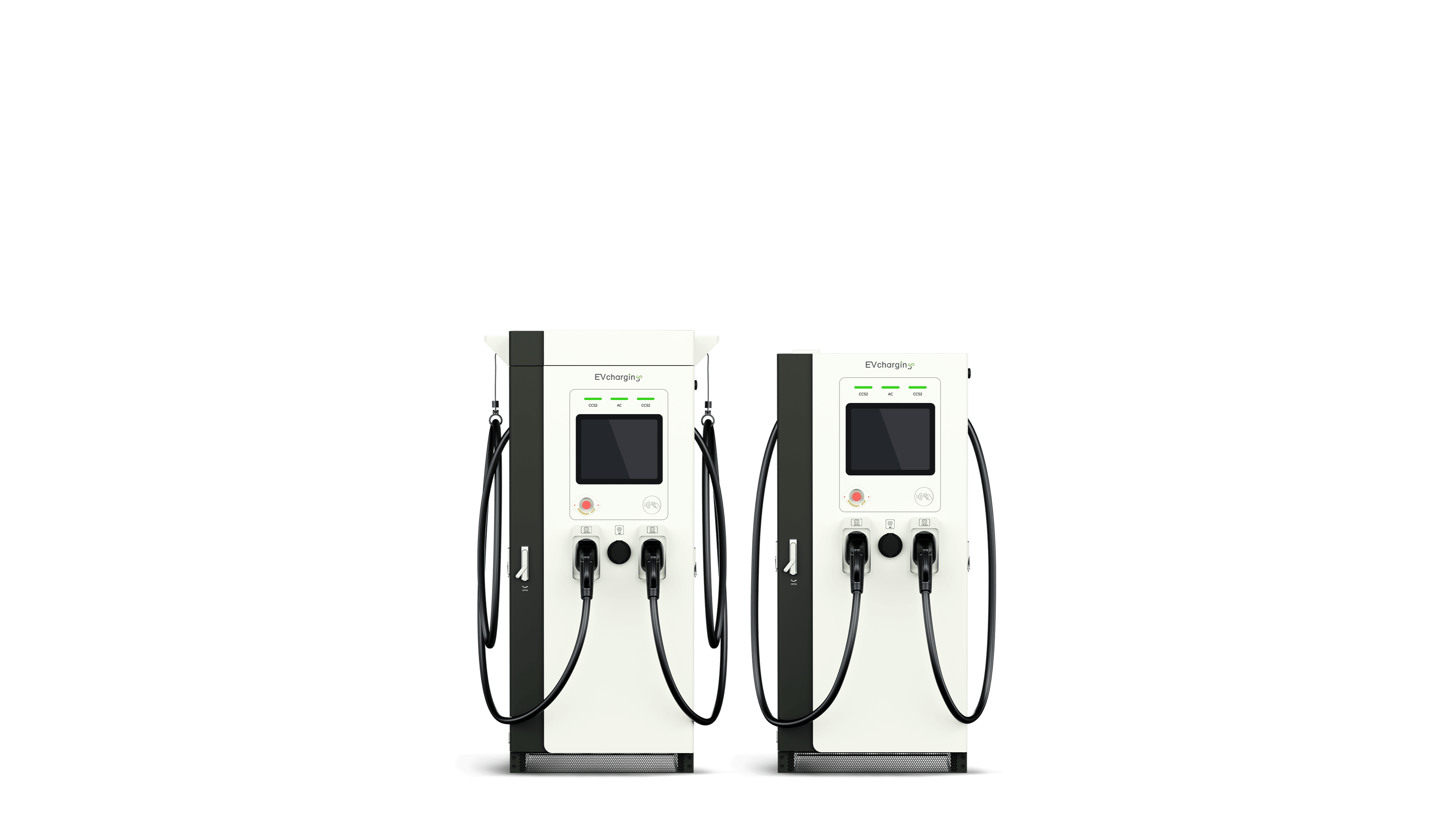

80-160kW Atlas DC Fast Charger
Product Advantages
Product Advantages
Technical Specifications
Technical Specifications
| Category | Atlas D80/120/160-EU | Atlas D80/120/160-UL |
Input
| Voltage | 400VAC±10% | 480VAC±10% |
| Current | 180A/250A/320A | 117A/174A/231A |
| Frequency | 50/60Hz ±10% | |
| AC Wiring | 3P+N+PE | |
Output
| Voltage | 200VDC-1000VDC | ||
| Max Current | 200A/200A/200A, 500A(Optional) | ||
| Power | 80kW | 120 kW | 160 kW |
| One Outlet | CCS2 | CCS1 | |
| Two Outlets | CCS2 + CHAdeMO or GB/T | CCS1 + CHAdeMO or GB/T | |
| Three Outlets | CCS2 + CHAdeMO or GB/T+Type-2 (22 kW) socket(optional) | CCS1 + CHAdeMO or GB/T+Type-1 (22 kW) socket(optional) | |
Screen& Coummunication
| HDMI | 15" high brightness full color touchscreen display |
| Network | Ethernet, Wi-Fi, SIM (4G) |
| Protocol | OCPP 1.6J, OCPP 2.0J ready |
Protection
| Electrical | Protection against short circuit, overvoltage, undervoltage, over temperature, integrated surge protection, lightning, detection of grounding, insulation, phasedeficiency, RCD: AC outlet - 30 mA AC + 6 mA DC; DC outlet-Type A |
| Hardware | Emergency stop button |
| Rating | IP54, IK10 (screen IK08) |
Certification & Standards
| Certifications | CE, UKCA, RoHS | UL, ENERGY STAR |
| Standards | IEC 61851-1, IEC 61851-23, IEC 61851-21-2, RoHS | UL 2202, UL 2231-1, UL 2231-2 |
Authentication
| Online | 1. APP; 2. RFID: ISO 14443 mifare 1; 3. ISO 15118 Plug & Charge; 4. POS (Visa / Master Card, Debit Card, Apple Pay, Google Pay) |
| Offline | 1. White listed RFID card; 2. Password |
General Design
| Dimensions (WxDxH) | 850x600x1880mm | ||
| Package Dimensions(WxDxH) | 1270x820x2066mm | ||
| Net Weight | 320kg | 330kg | 340kg |
| Gross Weight | 325kg | 335kg | 345kg |
| Cable | Standard 5m; Optional 7m; Cable management system optional | ||
| Standby Power | <80W | ||
| Storage Temp | -40°C~70℃ | ||
| Operation Temp | -30°C~55℃ | ||
| Humidity | 5% - 95% | ||
| Altitude | ≤2000m | ||
| Noise | ≤65dB | ||
| Material | Stainless Steel / Galvanized steel | ||
