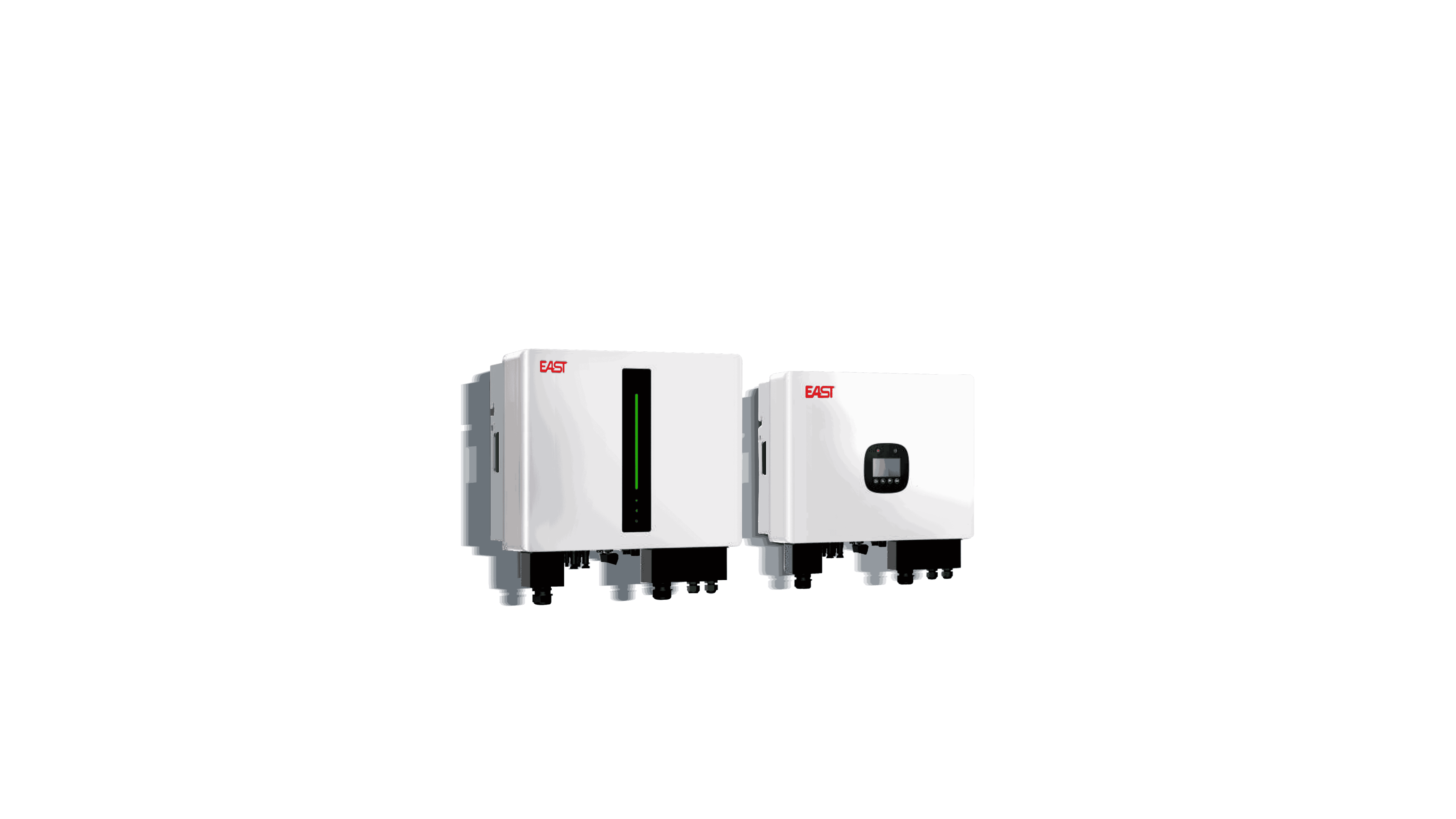

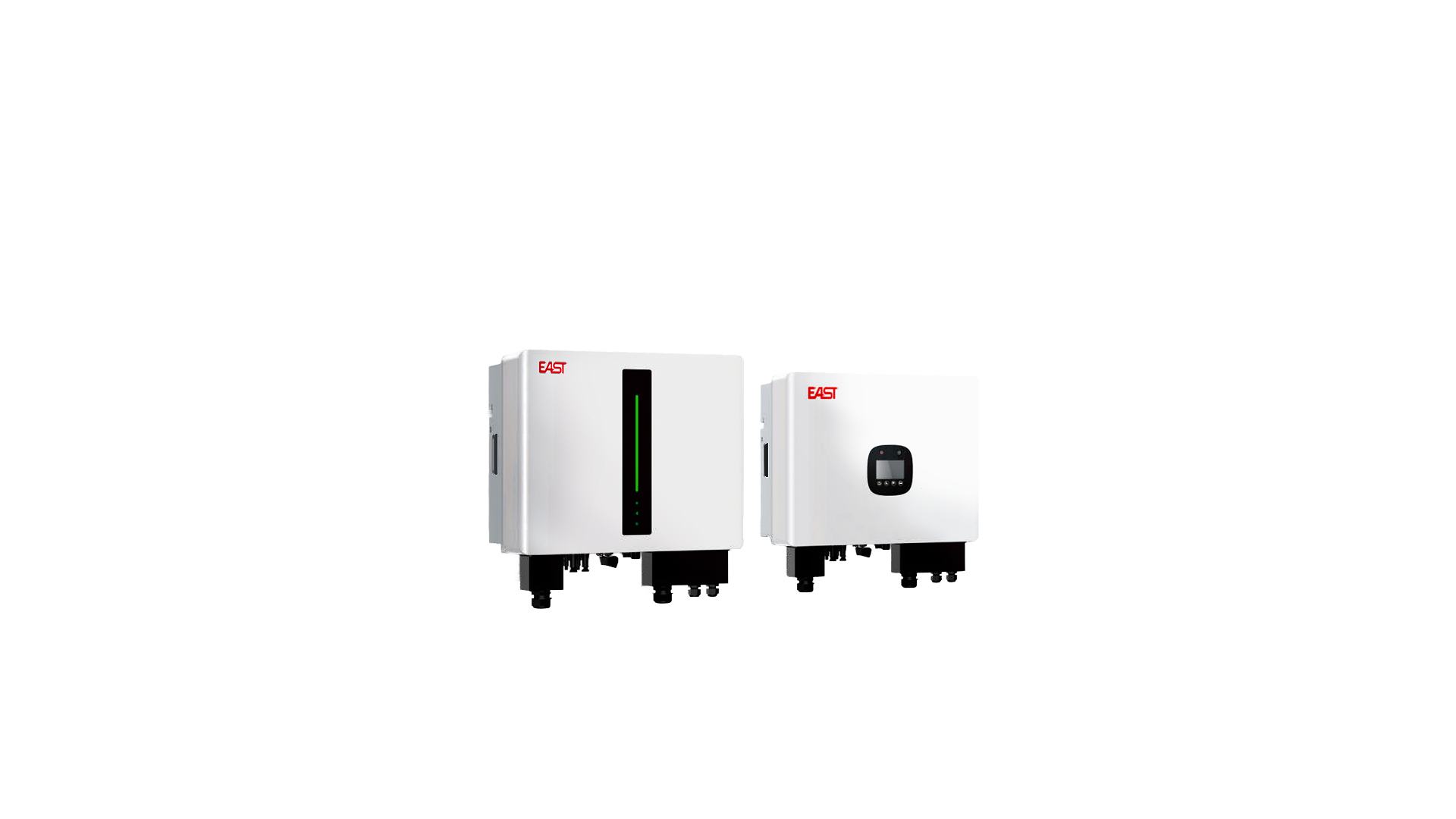

EAHI-3000-SL/3600-SL/5000-SL/6000-SL
Single-phase Hybrid Inverter
Product Advantages
Product Advantages
Technical Specifications
Technical Specifications
| Model | EAHI-3000-SL | EAHI-3600-SL | EAHI-5000-SL | EAHI-6000-SL |
PV input parameter
| Max. input power | 4680W | 6500W | 7800W | |
| Max. input voltage | 550Vdc | |||
| Rated input voltage | 360Vdc | |||
| Start-up voltage | 150Vdc | |||
| Min. operating voltage | 100Vdc | |||
| MPPT voltage range | 100~540Vdc | |||
| Max. input current per MPPT | 16A | 16A/16A | ||
| Max. short-circuit current per MPPT | 24A | 24A/24A | ||
| Number of MPPT | 1 | 2 | ||
| Number of input strings per MPPT | 1 | 1/1 | ||
Battery input parameter
| Battery type | Li-ion, Lead-acid battery | |||
| Voltage range | 42~58Vdc | |||
| Max. charge current | 66A | 75A | 100A | 100A |
| Max. discharge current | 66A | 75A | 100A | 120A |
| Charging curve | 3 Stages/Equalization | |||
| Lithium battery charging strategy | BMS self-adaption | |||
AC input parameter(grid)
| Grid type | Single phase(L/N/PE) | |||
| Input voltage range | 184-276Vac | |||
| Input frequency range | 50±5Hz/60±5Hz | |||
| Max. input current | 21.8A | 26.2A | 36.5A | 40A |
AC output parameter(grid)
| Rated output power | 3000W | 3600W | 5000W | 6000W |
| Max. apparent output powe | 3000VA | 3600VA | 5000VA | 6000VA |
| Grid system mode | Single phase(L+N+PE) | |||
| Rated output voltage | 220Vac/230Vac | |||
| Rated output frequency | 50Hz/60Hz | |||
| Rated output current | 13.6A/13.0A | 16.4A/15.7A | 22.7A/21.8A | 27.3A/26.1A |
| Max. output current | 13.6A | 16.4A | 22.7A | 27.3A |
| Power factor | >0.99(0.8 leading~0.8 lagging) | |||
| THDI | <3%(@Rated Power) | |||
AC output parameter(back-up)
| Rated output power | 3000W | 3600W | 5000W | 6000W |
| Max. apparent power | 3000VA | 3600VA | 5000VA | 6000W |
| Output system mode | Single phase(L+N+PE) | |||
| Rated output voltage | 230Vac(208/220/240Vac settable) | |||
| Rated output frequency | 50Hz/60Hz | |||
| Rated output current | 13.0A | 15.7A | 21.8A | 26.1A |
| Max. output current | 14.4A | 17.3A | 24.0A | 28.8A |
| THDV | <3%(linear load) | |||
| Transfer time | S10ms | |||
Efficiency
| Max. efficiency | 97.8% | |||
| MPPT efficiency | 99.9% | |||
Protections
| Protections | Over/under voltage, over/under-frequency, over load, output short-circuit, over temperature, residual current monitoring unit,output over-current, insulation resistance, antislanding, surge protection | |||
| Output overvoltage protection | DC Type I/AC Type IIl | |||
Others
| Communications | RS485, WIFI | |||
| Dimensions(WxHxD)(mm) | 548x440x197 | |||
| Net weight(kg) | 21.4 | 24.8 | ||
| Topology | High frequency isolation(for battery) | |||
| IP rating | IP66 | |||
| Operating temperature | -25°C~+60°C(>45°C derating) | |||
| Cooling mode | Natural cooling | |||
| Altitude | 4000m | |||
| Noise level at 1 m | ≤25dB | |||
| Installation mode | Wall-mounted | |||
Standards
| Safety regulation | IEC/EN 62109-1/-2, AS62109 | |||
| EMC | EN 61000-6-1/-2/-3/-4 |
|||
| Grid connection | CEI 0-21, DIN VDE V 0124-100:2020, VDE-AR-N 4105:2018, AS4777.2, NRS097-2-1, EN 50549-1 | |||
