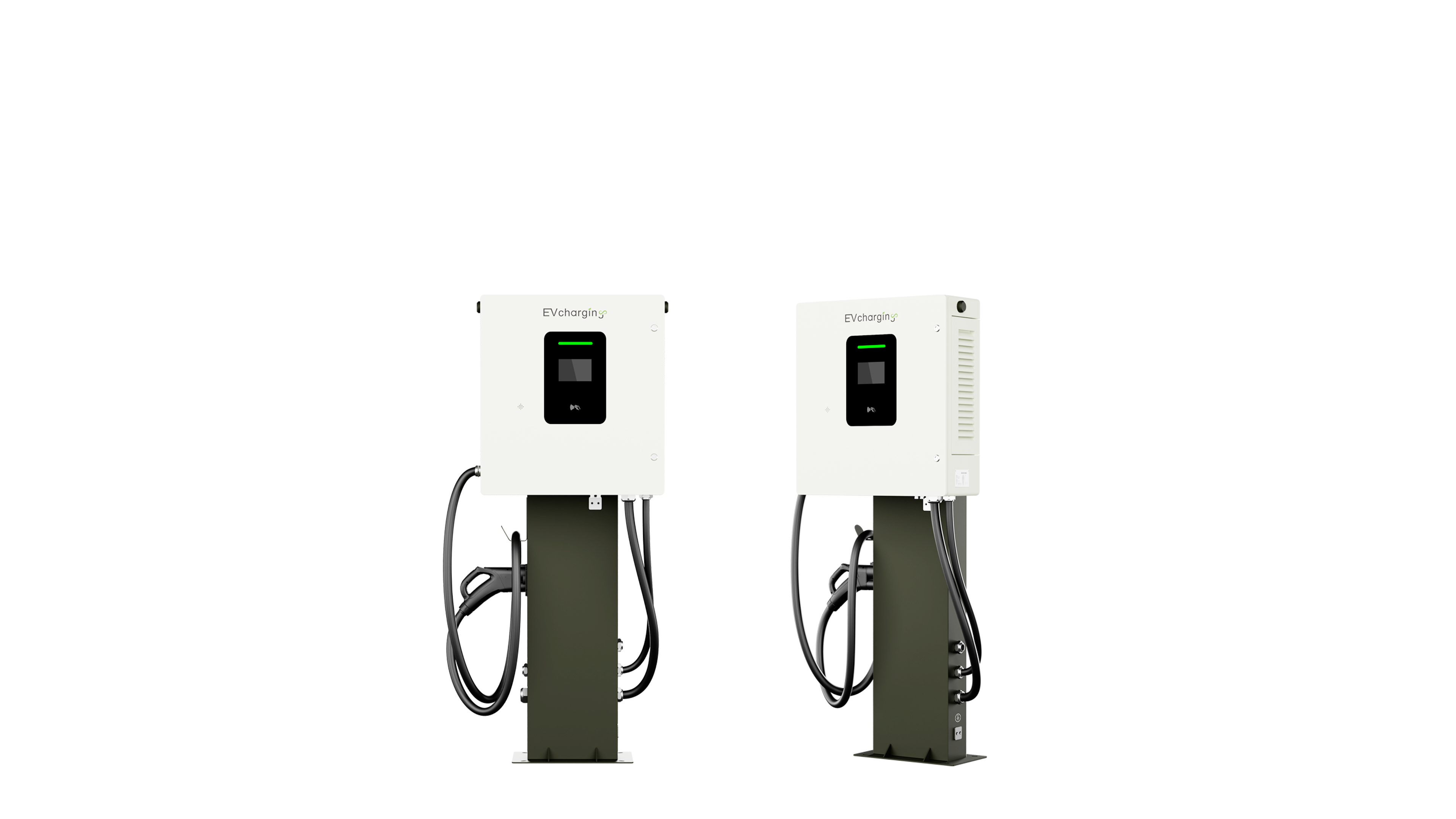

20-80kW EVDC Fast Charger
Product Advantages
Product Advantages
Technical Specifications
Technical Specifications
| Model | EVDC 20kW | EVDC 30kW | EVDC 40kW |
Input
| Voltage | 400V±10% | ||
| Current | 36A | 52A | 67A |
| Frequency | 50/60Hz | ||
| AC Wiring | 3P+N+PE | ||
Output
| Voltage | 200VDC-1000VDC | ||
| Current | 67A | 100A | 125A |
| Power | 20kW | 30kW | 40kW |
| Outlet | Single outlet: CCS2; CB/T | ||
Screen& Coummunication
| Screen | 7" High brightness full color touch screen display |
| Network | Ethernet, 4G, Wi-Fi, Bluetooth |
| Protocol | OCPP 1.6J, support update to OCPP 2.0J |
Protection
| Electrical Protection | Protection against short circuit, over-voltage, under-voltage, over temperature,surge,lightning; Detection of grounding, insualtion, phase deficiency; RCD protection. |
| Hardware | Emergency stop button |
| Rating | IP54 |
Standards
| Standards | GB/T 2023.1&4; GB/T 18487.1 |
Authentication
| Online | APP, RFID, POS (Visa/Mastercard, Debit Card, Apple Pay, Google Pay), VIN |
| Offline | White-listed RFID card; Password |
General Design
| Dimensions (WxDxH) | 700x225x750mm |
| Pole Dimensions (WxDxH) | 360x150x1700mm |
| Weight | 160kg |
| Cable | 5m, or customized |
| Standby Power | <20W |
| Installation | Wall mounting, Pole mounting (pole is optional) |
| Storage Temp | -40°C ~70℃ |
| Operation Temp | -25°C ~50℃ |
| Humidity | ≤95% |
| Altitude | ≤2000m |
| Noise | ≤65dB |
| Material | Galvanized metal |
