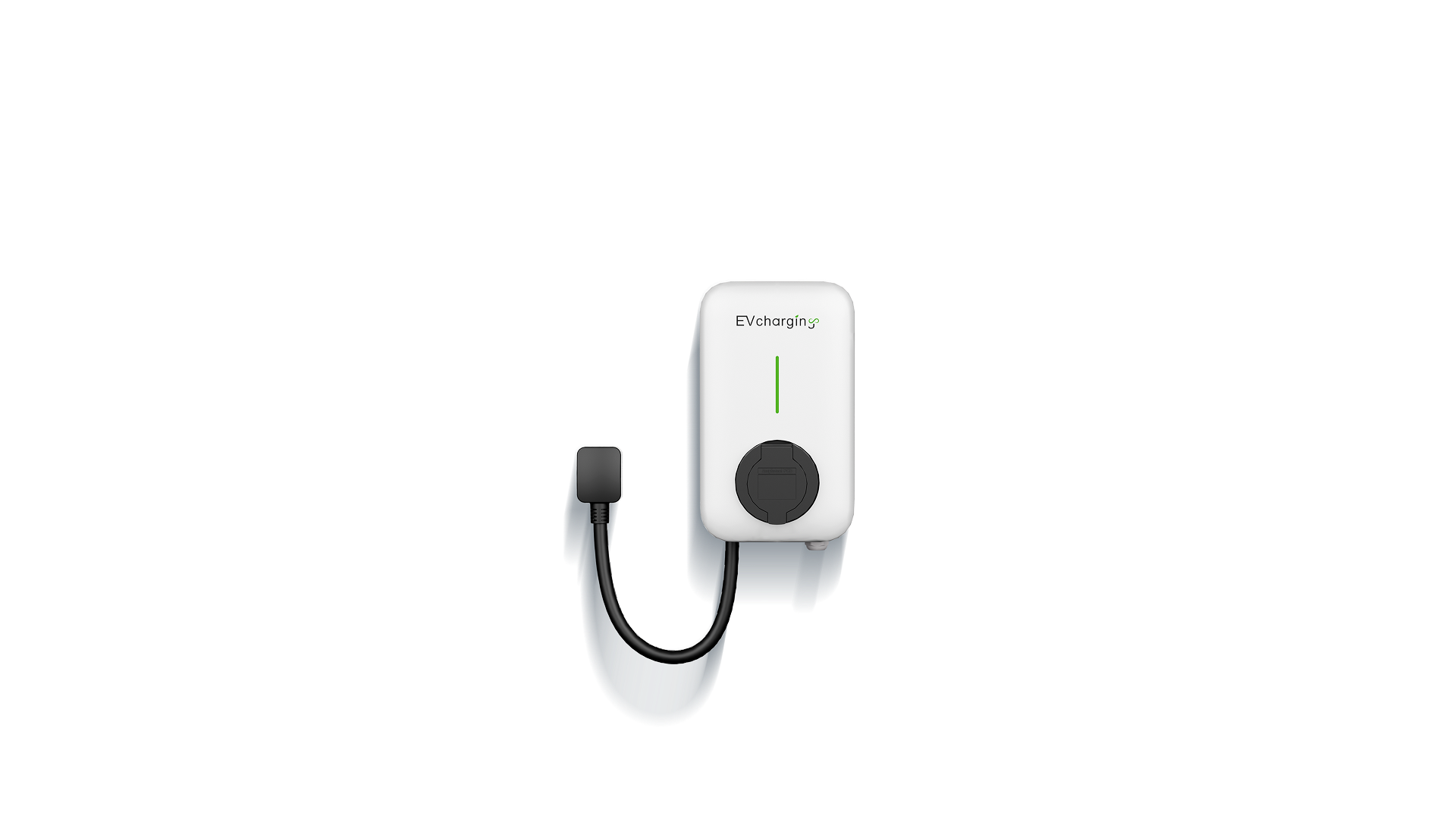

7/11kW Atlas AC Home Charger
Product Advantages
Product Advantages
Extreme Safety
· Current limiting protection to safeguard home power use and prevent nuisance tripping
· 9-fold protections for user and vehicle safety
· Certified by the third party
High-value Quality
· Robust, weatherproof design, up to lP65, -40℃ to 60°C operating temperature
· Always connected with Wi-Fi, Bluetooth, Ethernet(optional), remote support and firmware upgrades
Ultimate Experience
· Compatible with every electric vehicle
· Easy to install and maintain
· Continuous uptime without abnormal interruption
Intelligent Management
· Dynamic load management, efficient energy distribution for optimal charging
· Scheduled charging time for lower rates
· OCPP-compliant
Technical Specifications
Technical Specifications
| Model | A7/11-ST-EU Socket/Cable |
Input
| Voltage | 230VAC±20%/400VAC ± 20 % |
| Current | 1-phase 32A/3-phase 16A |
| Frequency | 50/60Hz |
| Network Type | TN/TT (LN voltage 240V) |
Output
| Voltage | 230VAC + 20%/400VAC ± 20% |
| Current | 1-phase 32A / 3-phase 16A |
| Power | 7kW/11kW |
Features & Functions
| Material | PC+ASA |
| Indicator | LED |
| Cable Length | Standard 3.5m; Optional 5m |
| Standby Power Consumption | <4W |
Communication
| Communication | Standard: Wi-Fi, Bluetooth, Ethernet; Optional: 4G |
| User Authentication | Plug & Charge, RFID, APP |
| Backend Protocol | OCPP 1.6J, support update to OCPP 2.0J |
Safety
| Residual Current Protection | 30 mA AC + 6 mA DC |
| Safety Protection | Overcurrent, overvoltage, undervoltage, over-temperature, sticking relay ground continuity monitoring, household power use protection, residual current protection, integrated surge protection |
Certification & Standards
| Certifications | CE, ROHS |
| Standards | EN IEC 61851-1, EN IEC 61851-21-2 |
General Design
| Dimensions (WxDxH) | Socket/Cable version: 190x110x320mm |
| Package Dimensions (WxDxH) | Socket version: 280x250x390mm ; Cable version: 335x280x470mm |
| Net Weight | Socket version: 5kg; Cable version: 7kg |
| Gross Weight | Socket version: 7kg; Cable version: 9kg |
| IP & lK Rating | Socket version: IP55, IK10; Cable version: lP65 |
| Installation | Wall-mounting / Pole-mounting |
| Operating Temperature | -40°C ~ 60℃ |
| Operating Humidity | 5% - 95% |
| Operating Altitude | ≤2000m |
