EAHI-6000-SL-S / 5KWh
Single-Phase Home ESS
Product Advantages
Product Advantages
Technical Specifications
Technical Specifications
| Hybrid inverter specification | EAHI-6000-SL-S |
PV input parameter
|
PV maximum input power
|
8000W
|
|
PV maximum input voltage
|
550Vdc
|
|
Starting voltage
|
150Vdc
|
|
PV maximum input current
|
16/16A
|
|
Short circuit current
|
24/24A
|
|
Number of input strings per MPPT
|
1+1
|
AC input/output parameter(grid side)
|
Input voltage range
|
184~276Vac
|
|
Input frequency range
|
50±5Hz/60±5Hz
|
|
Maximum input current
|
40A
|
|
Rated output power
|
6000W
|
|
Maximum apparent output power
|
6000VA
|
|
Grid system mode
|
1/N/PE
|
|
Rated output voltage&frequency
|
220Vac/230Vac&50Hz/60Hz
|
|
Rated output current
|
27.3A/26.1A
|
|
Power factor
|
>0.99(0.8 lead~0.8 lag)
|
AC output parameter(back-up side)
|
Rated output power
|
6000VA/6000W
|
|
Grid system mode
|
1/N/PE
|
|
Rated output voltage&frequency
|
230Vac(208/220/240Vac settable)&50Hz/60Hz
|
|
Rated output current
|
27.3A/26.1A
|
|
Voltage harmonic
|
≤3%(linear load)
|
|
Switching time
|
≤10ms
|
Efficiency
|
Maximum efficiency
|
97.8%
|
|
MPPT efficiency
|
99.9%
|
Protection
|
Comprehensive
|
Grid over-voltage protection, grid over-frequency protection, grid overload protection, over-temperature protection, anti-islanding protection,
insulation resistance detection, residual current monitoring unit, output over-current protection, output short-circuit protection, surge protection
|
|
Surge protection
|
DC Type II/AC Type III
|
Inverter standard
|
LVD
|
IEC/EN 62109-1/-2, AS62109
|
|
EMC
|
EN 61000-6-1/-2/-3/-4
|
|
Grid-tied
|
CEI 0-21, DIN VDE V 0124-100:2020, VDE-AR-N 4105:2018, NRS097-2-1, EN 50549-1G99/1-9:2022, ETSI EN303645+PSTI,
C10/11:2021, XP C 15-712-3:2019, ELOT EN 50549-1:2019, PEA
|
Inverter other parameter
|
Dimensions(WxHxD)
|
700×530×405mm
|
|
Weight
|
41.4kg
|
| Model | 5KWH |
Battery specification
|
Cell technology
|
LiFePO4
|
|
Battery voltage
|
51.2Vdc
|
|
Maximum expandable number
|
4
|
|
Energy capacity
|
10kWh
|
|
Cell type
|
314Ah
|
|

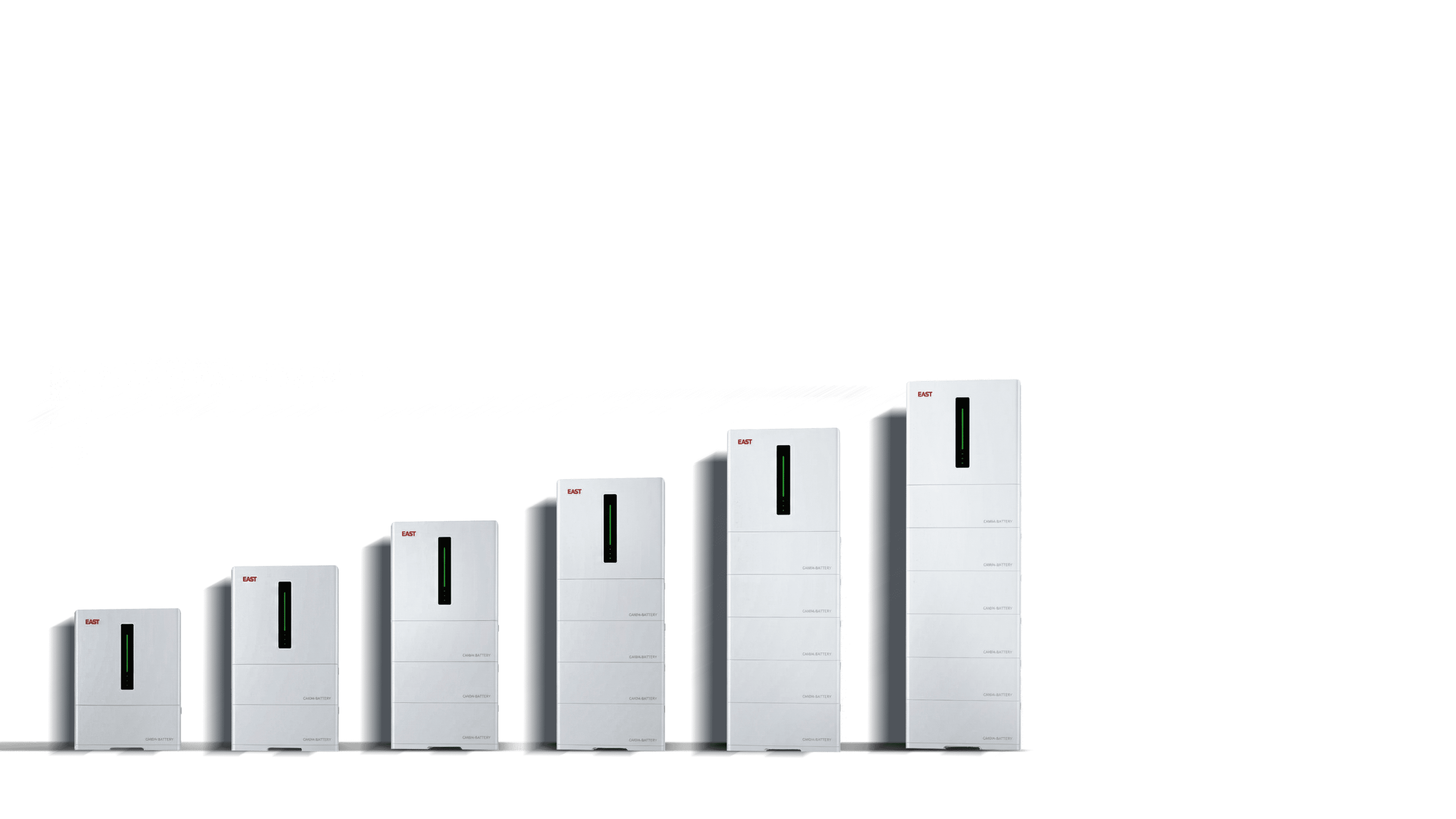

Scalable capacity range
|
10kWh~40kWh
|
|
DOD
|
Max. 100% DOD(settable)
|
|
Maximum charging power
|
5kW@1module, 6kW@>1module
|
|
Maximum discharging power
|
5kW@1module, 6kW@>1module
|
|
Max. charging current
|
100A
|
|
Max. discharge current
|
105A@1module, 120A@>1module
|
|
Communication interface
|
485 and CAN
|
|
Dimensions(WxHxD)
|
700×250×405mm
|
|
Weight
|
83kg
|
|
Certification
|
IEC 62619, IEC 63056, UN 38.3
|
Base parameter
|
Dimensions(WxHxD)
|
700×81.5×405mm
|
|
Weight
|
4.8kg
|
