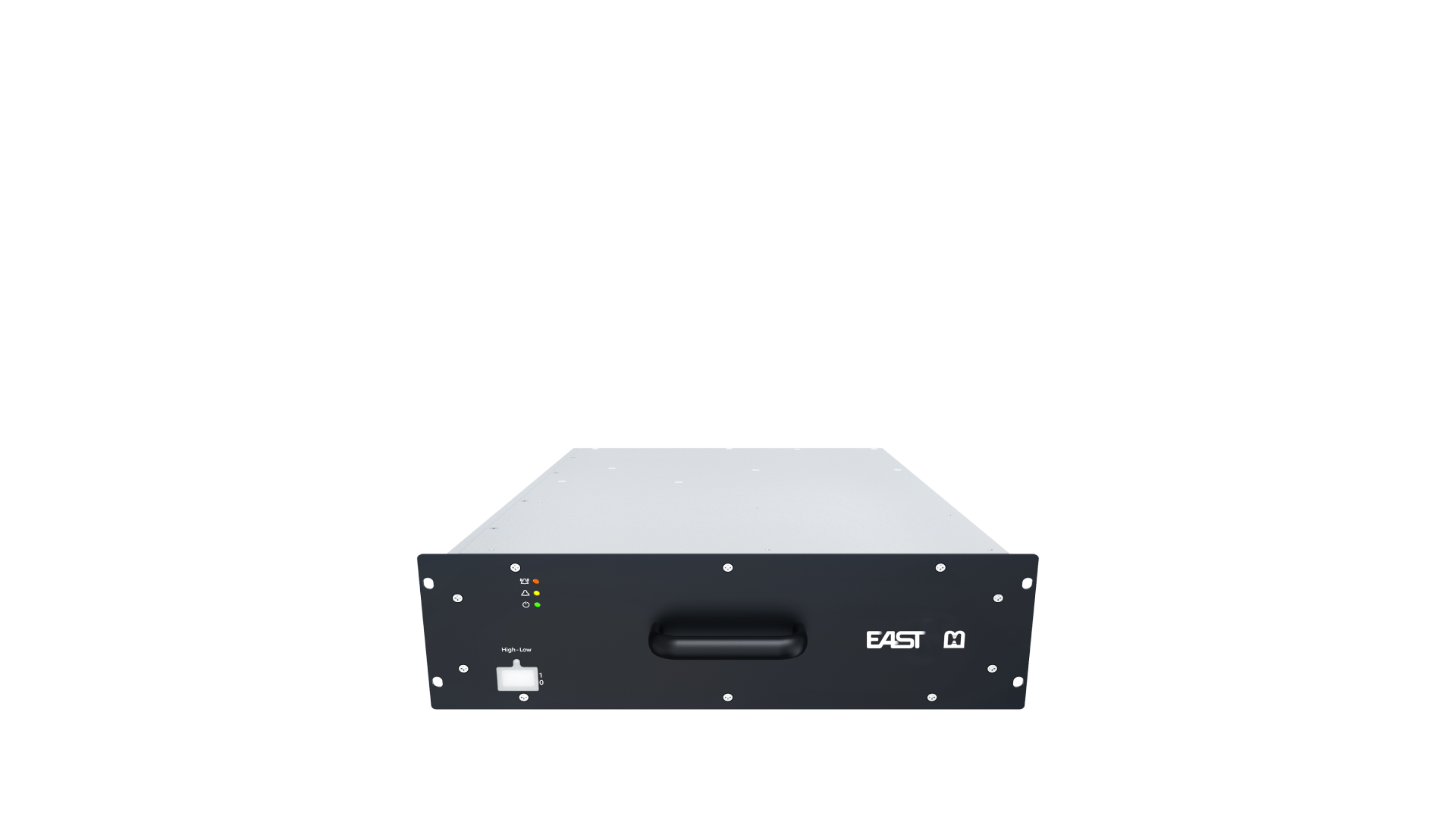

EC1K0K67
Commercial Vehicle Charger Module
Product Advantages
Product Advantages
Technical Specifications
Technical Specifications
| Product Model | EC1K0K67 |
AC Input
| Max Input Current | 115A | Standby Power Consumption | <0W |
| Input Voltage Range | 260~456Vac | Power Factor (PF) | PF≥0.999(at rated full load) |
| Input Frequency Range | 45~65Hz | THDi | ≤ 3% @ load > 30%; ≤ 5% @ load < 30% |
DC Output
| Output Voltage Range | 50~1000Vdc | Rated Output Power | 67kW |
| Output Current Range | 0~200A | Efficiency | > 96.5% @ 100% load; Peak efficiency ≥ 97.5% |
Operating Environment
| Operating | -40 ~ +60℃ (full load); Derated power from +60 ~ +75℃ | Altitude | 4000 m; Derating required above 2000 m |
| Storage Temperature | -40~+75℃ | Protection Class | IP20 |
| Operating Humidity | ≤ 95%, non-condensing | Heat Dissipation Method | Forced air cooling |
Others
| Dimensions (H*W*D) | 110 mm * 320 mm * 490 mm | Weight | < 22 kg |
