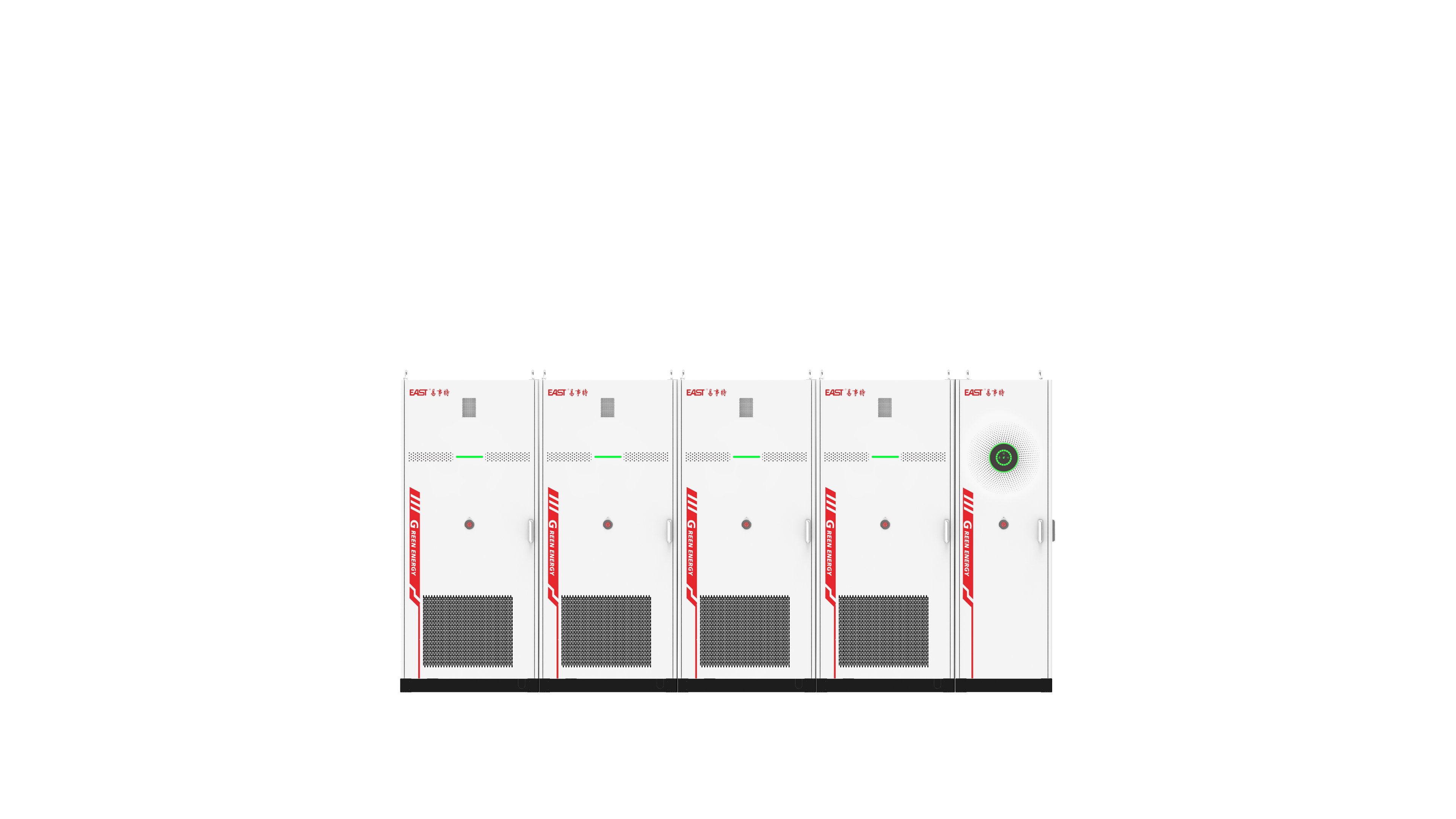

EAPVESS130K261KWH-C<br>Disel-PV-ESS All-in-one EAPVESS130K261KWH-C<br>Disel-PV-ESS All-in-one

EAPVESS130K261KWH-C
Disel-PV-ESS All-in-one

Product Advantages Product Advantages
High protection level

Cabinet IP54, C4 anti-corrosion; Inverter IP66 protection, battery PACK IP67 protection, can be used in a variety of harsh scenarios

Intelligent monitoring

Real-time intelligent power balance control, energy management and scheduling, information monitoring and early warning, safe and reliable system

High conversion efficiency

The PV-ESS inverter adopts SiC solution on a large scale, with the highest conversion efficiency reaching 98.2%, reducing the kWh cost

Modular design

The system consists of battery cabinet, power distribution cabinet, and EMS modules, which can be flexibly configured and support dynamic expansion

Three-level fire-fighting strategy

Level 1 power off and shutdown protection, Level 2 perfluorohexanone gas start, Level 3 water spray fire-fighting to prevent re-ignition

Application scenarios

Industrial and commercial energy storage, emergency backup power supply, Diesel-PV-ESS microgrid, etc.

Technical Specifications Technical Specifications
Model EAPVESS130K261KWH-C
Battery parameters
Cell 314Ah
Configuration 1P260S
Rated energy 261kWh
Rated voltage 832Vdc
Voltage range 728~949Vdc
Max. expandable quantity 4 clusters
PV parameters
Max. input power 260kW
Max. input voltage 950Vdc
Rated input voltage 810Vdc
Starting voltage 220Vdc
Max. input/short-circuit current 52/55Hz
MPPT quantity 6
Max. number of MPPT strings 3
Grid parameters
Rated input/output power 260/130kW
Voltage range 380/400Vac(-20%~20%),3/N/PE
Rated input current 394A/376.8A
Rated output current 197A/188.4A
Power factor >0.99(0.8 lead~0.8 lag)
THDi <3%@rated power
Diesel engine parameters
Rated power 130kW
Voltage range 380/400Vac(-20%~20%),3/N/PE
Rated current 197A/188.4A
Backup parameters
Rated power 130kW
Rated voltage 380/400Vac, 3/N/PE
Rated frequency 50/60Hz
Rated current 197A/188.4A
THDi <3%@linear rated power
System general parameters
On-grid and off-grid switching time <20ms
Max. conversion efficiency 99%
Europe/MPPT efficiency 98.2%/99.9%
IP rating Batery cabinet(IP54), battery pack(IP67), power distribution cabinet(IP20), PV-ESS inverter(IP65), power distribution box(IP55)
Operating temperature -30-60°C(>45°C derating)
Relative humidity <95%RH(non-condensing)
Altitude <4000m(>2000m derating)
Cooling method Battery cabinet@Liquid cooling/PV-ESS inverter@air cooling
Noise <65dB
Fire protection system Cell level+cabinet level gas fire-fighting(perfluorohexanone)/aerosol+water fire-fighting
Wired/wireless communication Ethernet(1 Modbus-TCP), RS485(1 Modbus-RTU)/4G/WIFI
Human-computer interaction LED, APP, Web
Standards IEC62109-1/2, IEC62619, IEC62477-1, UN38.3, UL9540A, UL1973, IEC62933-5-2, IEC61439-2 GB/T34120,GB/T34133, EN50549, IEC61000-6-1,2,3,4
Dimensions(WxHxD)(mm) 1000x2250x1350@battery cabinet, 800x2250x1350@power distribution cabinet
Weight(kg) <2000@battery cabinet, <1000@power distribution cabinet
