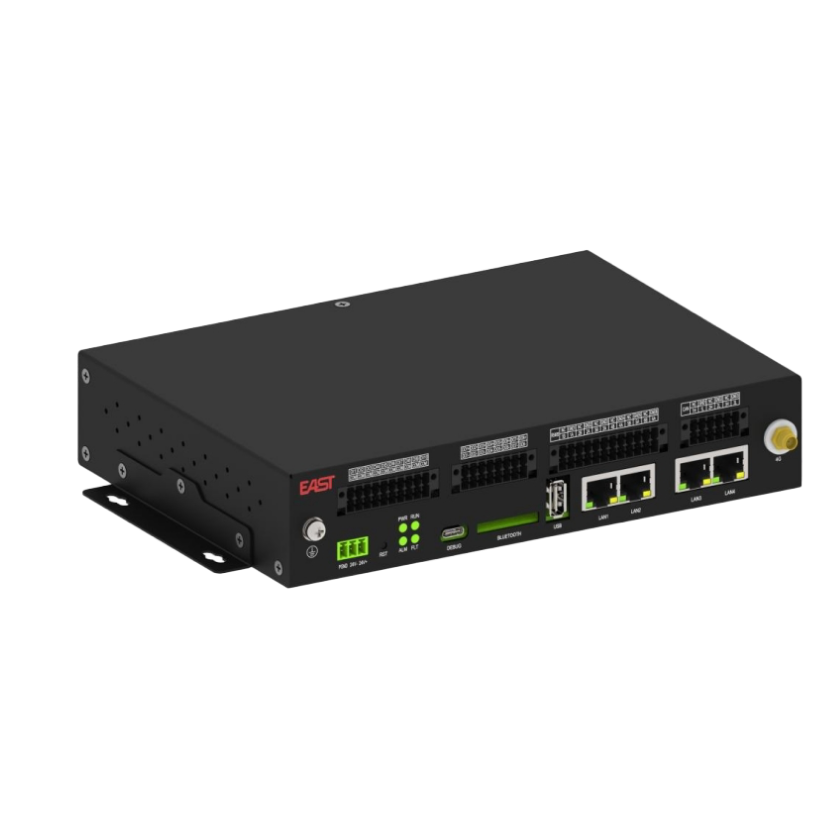

EMS Smart Gateway

EMSDM206 EMS Smart Gateway features acquisition, monitoring, analysis and optimal scheduling. Suitable for generation, grid and user sides, it provides a complete, systematic solution for energy storage.

Consult

Product Advantages Product Advantages

Rich Functions

64-bit ARM processor up to 2.0 GHz for high performance & regional autonomous control
Multiple operating strategies: peak shaving & valley filling, demand control, reverse power protection, schedule tracking, power smoothing, etc.
4 independent Ethernet ports for dual-network & GOOSE private network
Integrated PV, energy storage & EV charging management

Easy Expansion

Supports standard protocols: IEC 103/104, IEC 61850, GOOSE, MODBUS
6×RS485 for flexible IO/transmitter expansion
Optional 4G for full-device connectivity

Professional & Reliable

Industrial core board, fanless & maintenance-free
RT-Linux OS, millisecond-level data acquisition
Industrial-grade testing for stable operation

Technical Specifications Technical Specifications

Technical Specifications

Product Specifications

Processor	Quad-core ARM Cortex-A55
Memory	DDR4: 2 GByte
Storage	eMMC: 16 GByte
Operating System	RT-Linux OS

Interface Parameters

Network Port	4× 10/100/1000M Ethernet ports, RJ45
HDMI	1× HDMI 2.0
USB	2× USB 2.0
RS485	6× serial ports, baud rate: 1200~115200 bps
CAN	3× CAN 2.0, max baud rate: 1000 kbps
DVDO	8× DI + 8× DO dry contacts

Environmental Parameters

Operating Temperature & Humidity	-30℃~+70℃ 0～95%RH(non-condensing)
Storage Temperature & Humidity	-30℃~+70℃ 0～95%RH(non-condensing)
