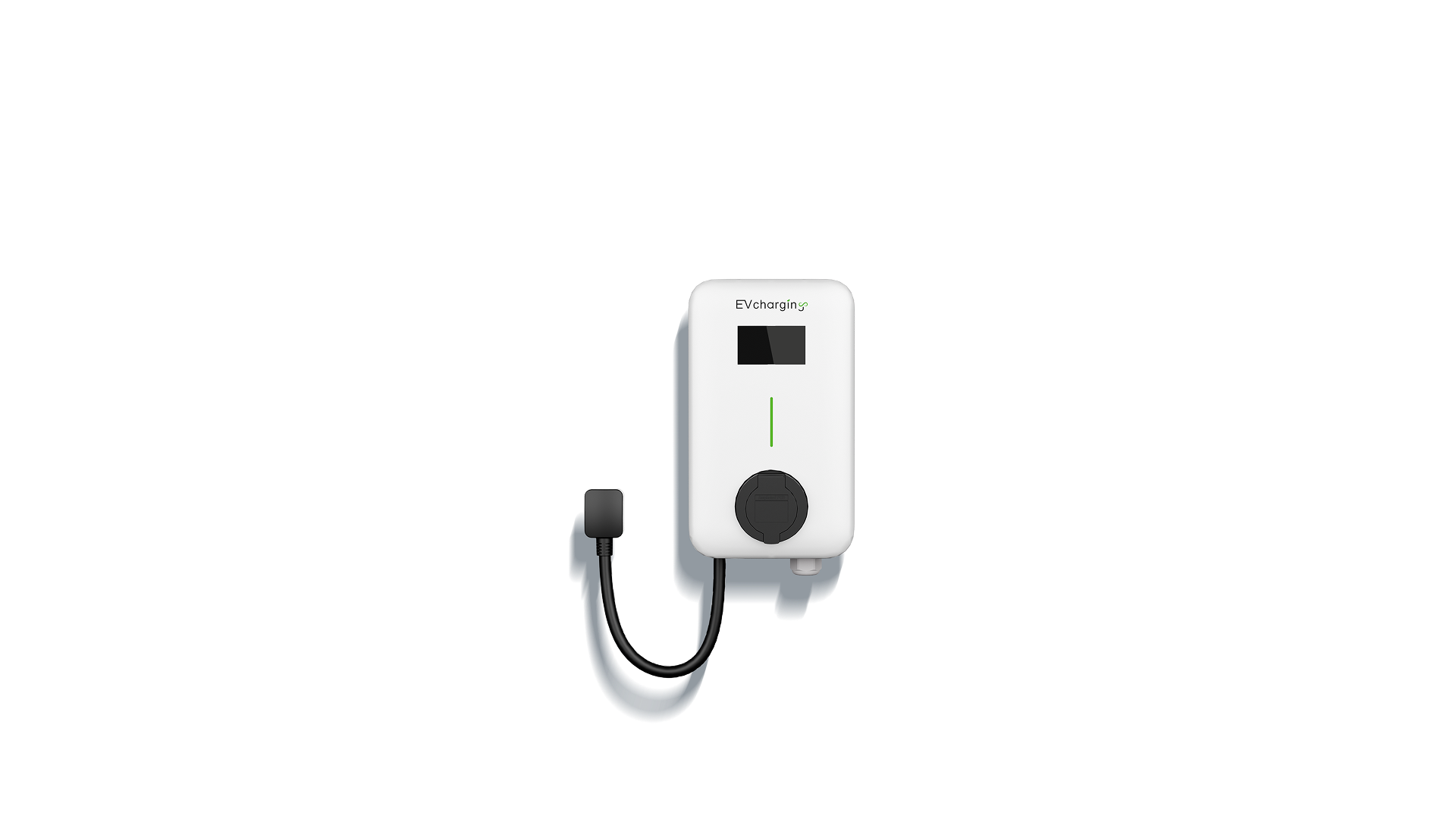

7-22kW Atlas AC Commercial Charger
Product Advantages
Product Advantages
Extreme Safety
· Current limiting protection to prevent nuisance tripping
· 9-fold protections for user and vehicle safety
· Certified by the third party
High-value Quality
· Robust, weatherproof design, up to IP65, anti-high and low temperature
· Always connected with Wi-Fi, Bluetooth, Ethernet（optionall）, remote support and firmware upgrades
Ultimate Experience
· Compatible with every electric vehicle
· Easy to install and maintain
· Continuous uptime without abnormal interruption
Intelligent Management
· Set custom charging fees, real-time charging insights via the operating system
· Dynamic load management, efficient distribution of energy for optimal charging
Technical Specifications
Technical Specifications
| Model | A7/11/22-OP-EU Socket/Cable | A7/9/11-OP-UL SH/SP |
Input
| Voltage | 230VAC + 20%/400VAC + 20% | 1-phase 208VAC/240VAC |
| Current | 1-phase 32A/3-phase 16A/3-phase 32A | 1-phase 32A, 40A, 48A |
| Frequency | 50/60 Hz | |
| Network Type | Support, TT, TN grid | Support TT, TN grid |
| Input Connector | Hardwired | Hardwired/Plug |
Output
| Voltage | 230VAC+20%/400VAC +20% | l-phase 208V/240VAC |
| Current | 1-phase 32A/3-phase 16A/3-phase 32A | 1-phase 32A, 40A, 48A |
| Power | 1-phase 7kW/3-phase 11kW, 22kW | 1-phase 7.7kW, 9.6kW, 11.5kW |
| Output Connector | Mennekes (Type 2) | SAE J1772 (Type 1) |
Features & Functions
| Material | PC+ASA | PC-XD2322 (f1) |
| Indicator | LED and 4.3" color LCD screen | |
| Cable Length | Standard 3.5m; Optional 5m/7m | Standard 5m; Optional 7m |
| Standby Power Consumption | <4W | |
Communication
| Communication | Standard: Wi-Fi, Bluetooth, Ethernet; Optional: 4G |
| User Authentication | RFID, APP |
| Backend Protocol | OCPP 1.6J, Support update to OCPP 2.0J |
Safety
| Residual Current Protection | 30 mA AC+6 mA DC | 20 mA CCID |
| Safety Protection | Overcurrent, overvoltage, undervoltage, over-temperature, sticking relay, ground continuity monitoring, household power use protection, residual current protection, integrated surge protection |
|
Certification & Standards
| Certifications | CE. UKCA, RoHS | UL, ENERGY START, RoHS |
| Standards | EN IEC 61851-1, EN IEC 61851-21-2 | SAE J1772, UI2594, UL2231-1,UL2231-2, UL199 |
| Dimensions (WxDxH)(mm) | Socket/Cable version: 235x110x395 | |
General Design
| Dimensions (WxDxH) | Socket/Cable version: 235x110x395mm | |
| Package Dimensions(WxDxH) | Socket version: 325x250x470; Cable version: 325x335x550mm | |
| Net Weight | Socket version: 5kg; Cable version: 7kg | |
| Gross Weight | Socket version: 7kg; Cable version: 9kg | |
| IP & IK Rating | Socket version: IP55, IK10; Cable version: IP65 | Cable version: IP65(NEMA 4), IK10 |
| Installation | Wall-mounting/Pole-mounting | |
| Operating Temperature | -40°C~55°C | -30°C~50°C |
| Operating Humidity | 5%-95% | |
| Operating Altitude | ≤2000m | |
