Monitoring Panel

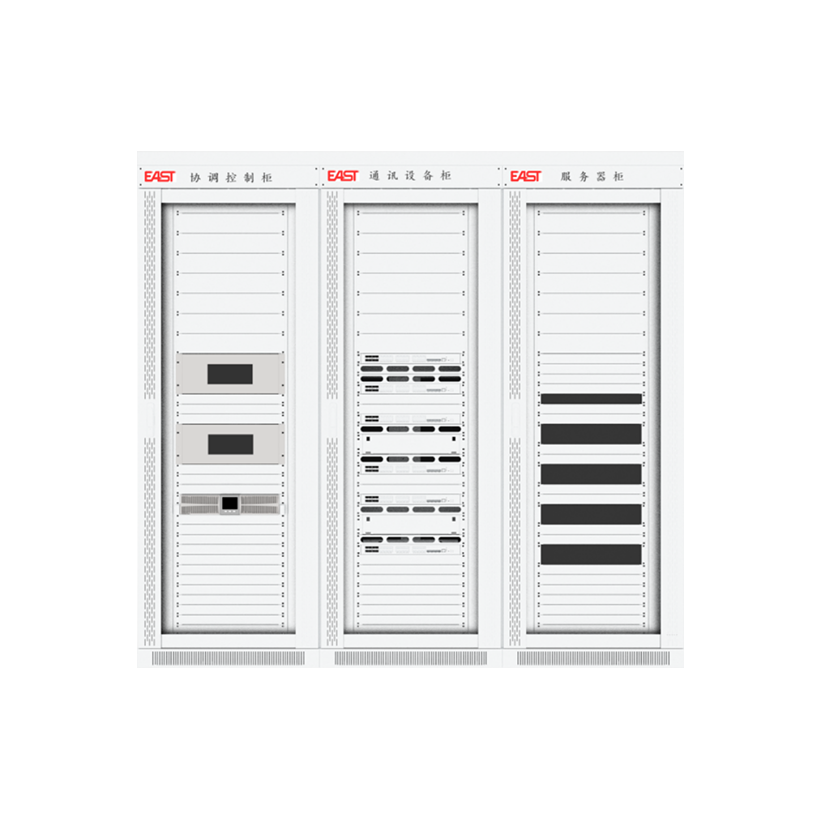

EAST eDome Monitoring Panel uses a standard power monitoring cabinet, integrating the core eDome monitoring system (software and hardware), firewall, network security, and power isolation devices. It safeguards power data security and ensures reliable operation of the station.
Consult
Product Advantages
Product Advantages
Technical Specifications
Technical Specifications
|
Technical Specifications |
Monitoring System
| Server | Industrial PC / Server (optional) |
| Monitoring Software | eDome |
System Specifications
| Fiber Interface | 4/8/16/24 fiber ports (optional) |
| Network Interface | 8/16/24 Ethernet ports (optional) |
| Firewall | Optional |
| Isolation Device | Optional |
| Encryption Device | Optional |
Power
| Power Supply Voltage / Frequency | AC220V/50Hz |
| Power Consumption | ≤2500W |
Environmental Parameters
| Cooling Method | Natural air cooling |
| Operating Ambient Temperature | 5℃~45℃ |
| Operating Ambient Humidity | 5%~95% |
Cabinet Parameters
| Protection Class | IP20 |
| Single Cabinet Dimensions (W×D×H) | 800×1000×2260(mm) 800×600×2260(mm) |
