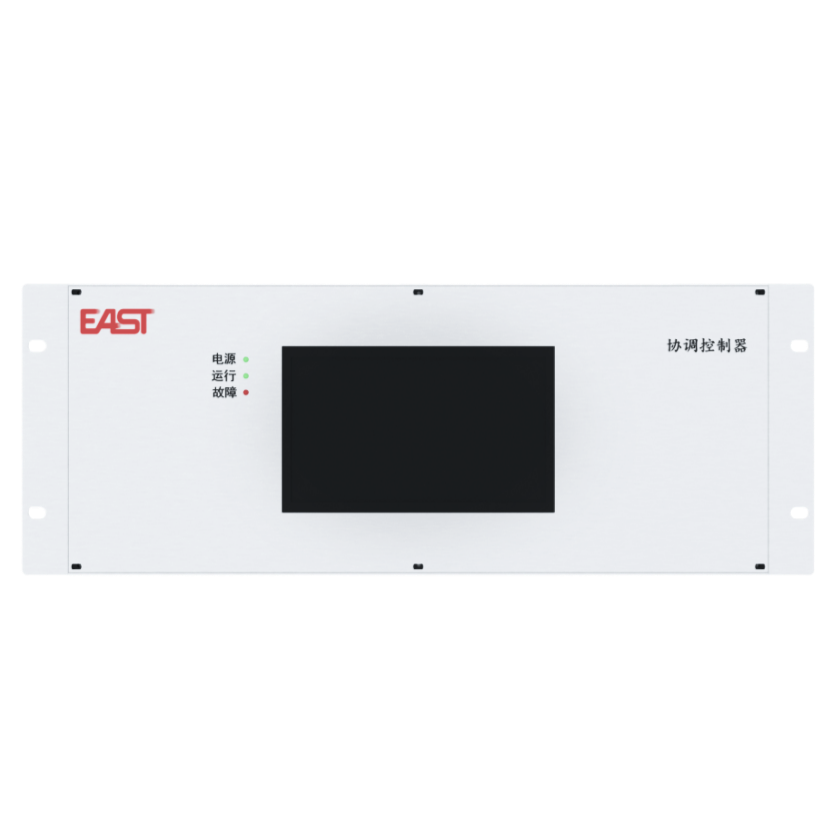

EAPMS-DM600 Coordination Controller
Powered by a high-performance DSP+ARM+FPGA platform, it quickly senses grid conditions and provides primary frequency control, dynamic reactive voltage regulation, and inertia support to actively stabilize grid frequency and voltage.
Consult
Product Advantages
Product Advantages
Technical Specifications
Technical Specifications
| Product Model | EAPMS-DM600 |
System Specifications
| Voltage/Current Sampling | 6 Grid-Connection Points |
| Digital Input (DI) | 16 Channels |
| Digital Output (DO) | 8 Channels |
| DC Input | 8 Channels |
| Number of Connectable PCS | 128 Units |
| Display | 7-inch Touch Color LCD Screen |
| IP Rating | IP20 |
| Dimensions (W×D×H) | 480×300×177(mm) |
Performance Parameters
| Primary Frequency Modulation Action Time | ≤20ms |
| Current/Voltage Error | ≤0.2%(Class 0.2) |
| Power/Energy Error | ≤0.5%(Class 0.2) |
| Frequency Measurement Error | ≤0.001Hz |
Communication Parameters
| Communication Interface | RS485 (4 channels), Ethernet port (4 channels), USB 2.0 (1 channel) |
