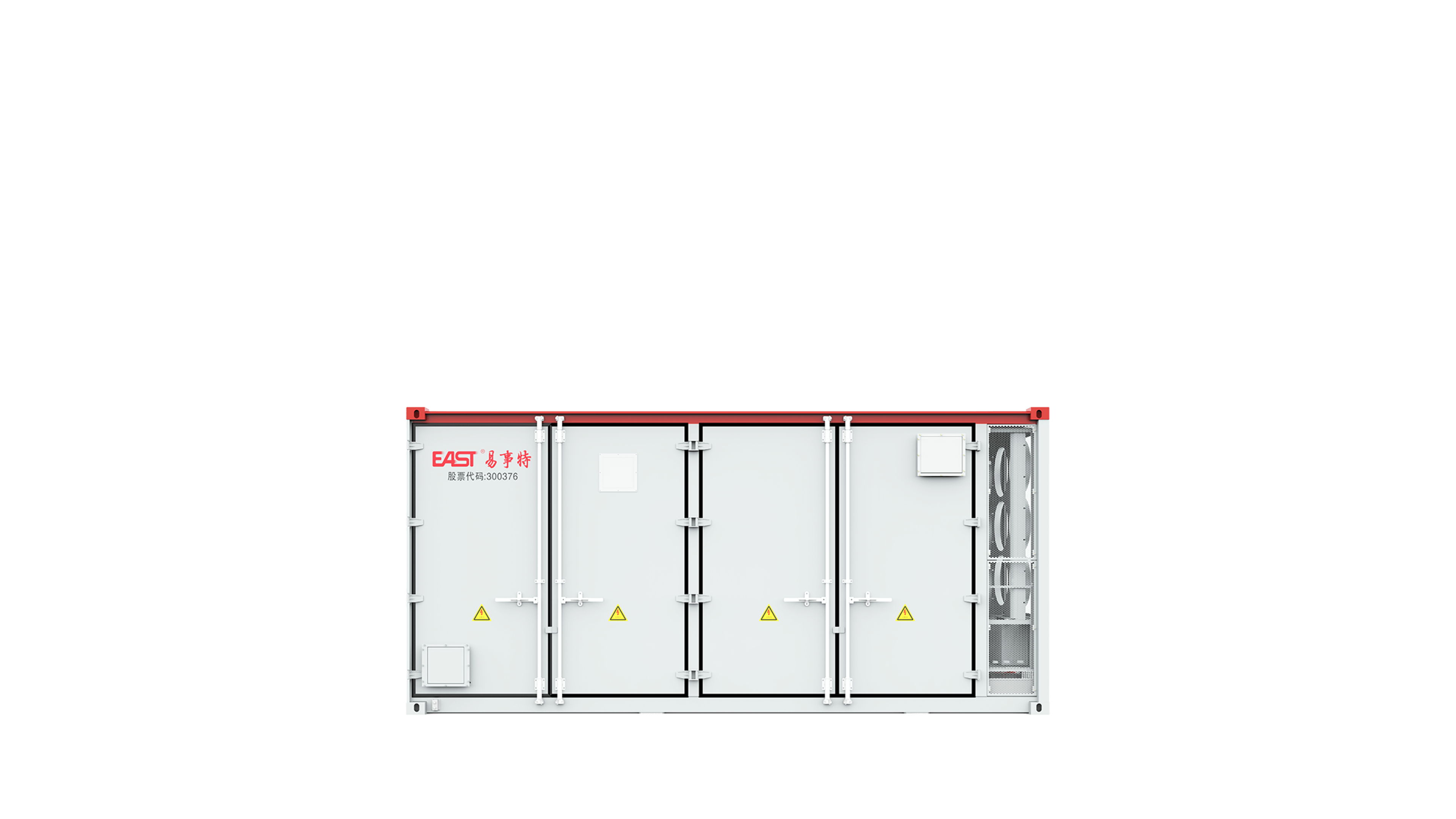

2.5MW/5MWh-2h<br>All-in-one AC & DC ESS (Overseas) 2.5MW/5MWh-2h<br>All-in-one AC & DC ESS (Overseas)

2.5MW/5MWh-2h
All-in-one AC & DC ESS (Overseas)

Product Advantages Product Advantages
Innovative Design

· Highly integrated design within a 20-foot standard container, strictly meeting maritime shipping requirements.

· PACK 1P104S design, with high-voltage boxes and PCS highly integrated and layout further optimized.

· Integrated AC/DC design, increasing energy density by 14% and reducing LCOE by 3–5%

High Reliability

· Highly integrated and safe, with efficient operation and maintenance management across the entire lifecycle

· Three-level fire control linkage strategy, IP54 protection rating for the entire unit, supporting operation at altitudes up to 4,000 meters

Upgraded Configuration

· 12-cluster 314Ah large-cell design paired with 208kW string modules for seamless AC/DC system integration

· 1:1 cluster-level management eliminates parallel circulating currents and capacity loss at the cluster level

Extended Lifespan

· System cycle life exceeding 8,000 cycles
· Multi-level energy balancing management, paired with efficient intelligent air/liquid cooling systems, ensuring full lifecycle protection

Technical Specifications Technical Specifications
Model 2.5MW/5MWh
AC-side
Rated AC Output Power 2500kVA
Max. AC Output Power 2750kVA
Max. Output Current 2510A
Number of AC Input 12

Rated Output Voltage 690V
Grid Type 3P+PE
AC Grid Frequency 50Hz(45Hz~55Hz)
Grid Voltage Range 586.5V~759V
Power Factor >99%(Rated Power)
Adjustable Reactive Power Factor Range -1~+1
AC Current Distortion Rate <3%(Rated Power)
Isolation Method Non-isolated
DC-side
Cell LFP 3.2V/314Ah
System Battery Configuration 12P416S
Battery Rated Capacity 5015.96kWh
Battery Voltage Range 1123.2V~1497.6V

System Parameters
Dimensions (W x H x D) 6058x2896x2438mm
Weight ≤48T
IP Level IP54
Corrosion-proof Grade C5
Operating Temperature Range -30°C~60°C
Operating Humidity Range 0%~95%(No Condensation)
Max. Operating Altitude 4000m
Cooling Method Liquid Cooling
Fire Protection System Flammable Gas Detection + Active Ventilation + PACK-Level Fire Protection (optional) +Water Firefighting
System Communication Interface LAN
External System Communication Protocol ModbusTCP、 IEC61850
Certification GB/T-34120, GB/T-44026、UL9540A、IEC62619-2022、 IEC63056-2020、 IEC/EN62477-1-2023IEC62933-1-2024、UL1973-2022, UN38.3,IEC61000-6-2,IEC61000-6-4、 EN50549-2
