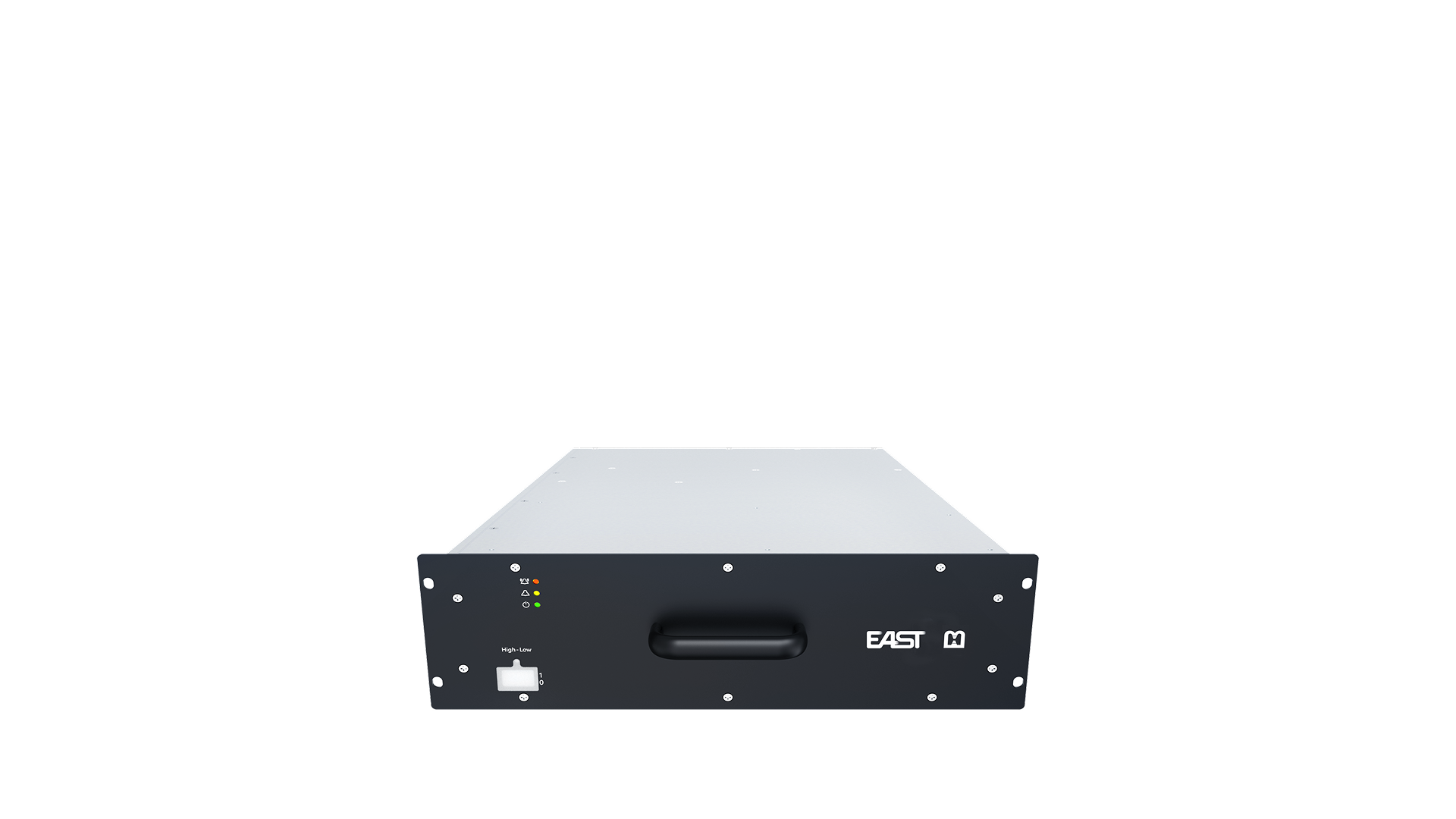

EC1K0K60

Ultra-Quiet Charger Module

Product Advantages Product Advantages

Intelligent & High-Efficiency Control

Full digital control supports constant voltage, constant current, and constant power modes, enabling parallel expansion via CAN communication.

Wide Power Range Coverage

With a single-module output of 60kW, the system can be flexibly scaled up to 120kW/240kW/360kW/480kW/720kW, perfectly adapting to diverse charging scenarios.

High Protection & Strong Adaptability

Boasting an IP-rated internal design and ultra-low noise level of 55dBA, it is ideal for applications with strict noise restrictions.

Modular & Flexible Scalability

Supporting parallel connection of multiple modules, it facilitates easy system power upgrades and capacity adjustments.

Technical Specifications Technical Specifications

Product Model

EC1K0K60

AC Input

Max Input Current	115A	Standby Power Consumption	<0W
Input Voltage Range	260~530Vac	Power Factor (PF)	PF≥0.999(at rated full load)
Input Frequency Range	45~65Hz	THDi	≤ 3% @ load > 30%; ≤ 5% @ load < 30%

DC Output

Output Voltage Range	50~1000Vdc	Rated Output Power	60kW
Output Current Range	0~200A	Efficiency	> 96.5% @ 100% load; Peak efficiency ≥ 97.5%

Operating Environment

Operating	-40 ~ +60℃ (full load); Derated	Altitude	4000 m; Derating required above 2000 m
Temperature	power from +60 ~ +75℃	/	2000 m
Storage Temperature	-40~+75℃	Protection Class	IP20
Operating Humidity	≤ 95%, non-condensing	Heat Dissipation Method	Forced air cooling

Others

Dimensions (H*W*D)

110 mm * 320 mm * 490 mm

Weight

< 22 kg
