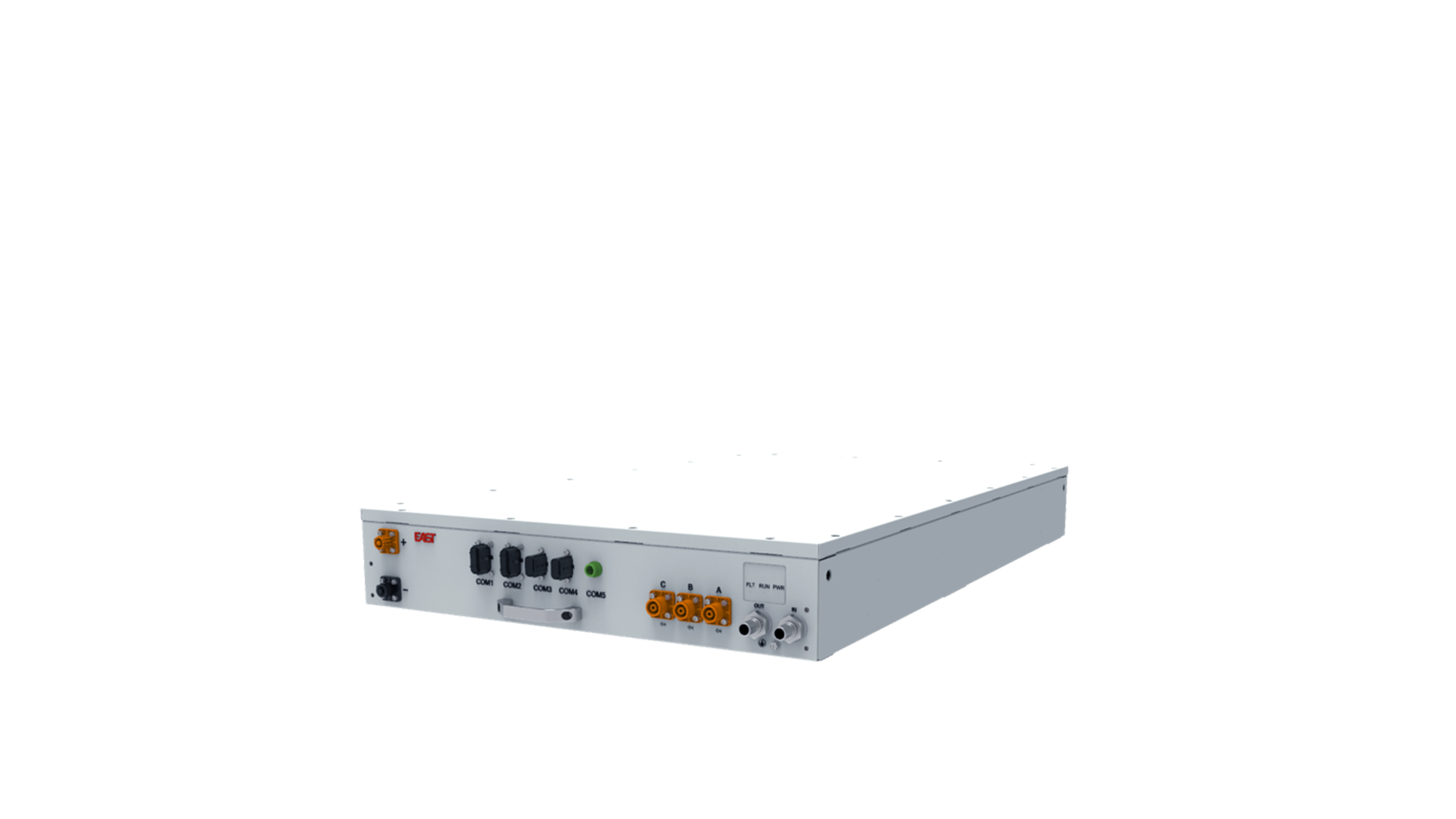

215kW Liquid-Cooled PCS Module
Product Advantages
Product Advantages
Technical Specifications
Technical Specifications
| Model | EAMPCS215KHV |
DC Side
| Maximum DC Voltage | 1500V |
| Minimum DC Voltage | 1000V |
| Operating Voltage Range | 1000V~1500V |
| Maximum DC Current | 241A |
| Number of Input Channels | 1 |
AC Side
| Rated Power | 215kW@50°C |
| Maximum Apparent Power | 235 kVA@45°C |
| Rated Grid Voltage | 690V |
| AC Wiring System | 3P+PE |
| Grid Voltage Range | -15% ~ +10% |
| Rated AC Current | 180A@50°C |
| Maximum AC Current | 198A@45°C |
| Rated Grid Frequency | 50Hz |
| Allowable Grid Frequency | 45~55Hz |
| THD | <3% |
| Power Factor (PF) | >99% |
| Reactive Power Adjustable Range | -105% ~ +105% |
Safety Functions
| Protection | DC Input Protection, AC Side Output Protection, Surge Protection, Grid Short-Circuit/Earth Fault.Insulation Impedance, Over-Temperature Fault Protection, LVRT. HVRT, Anti-Islanding Protection AC Overcurrent/Short-Circuit Protection, DC Overcurrent/Short-Circuit Protection DC Polarity Reverse Protection, Power Module Fault Protection (IGBT) |
System Parameters
| Maximum Efficiency | 99% |
| Communication Protocol | RS485, CAN2.0 |
| Protection Grade | IP66 |
| Anti-Corrosion Grade | C3 (Optional C5) |
| Standby Power Consumption | <0.5%Pn |
| External Communication Interfaces | RS485, CAN, Ethernet |
| Noise | <70dB |
| Cooling Method | Intelligent Liquid Cooling |
| Dimensions (WxHxD) | 780mm*155mm*1300mm (Excluding Mounting Lugs) |
| Operating Altitude | 4000m (Derating above 3000m) |
| Compliant Standards | GB/T34120,GB/T34133, IEC62477 |
