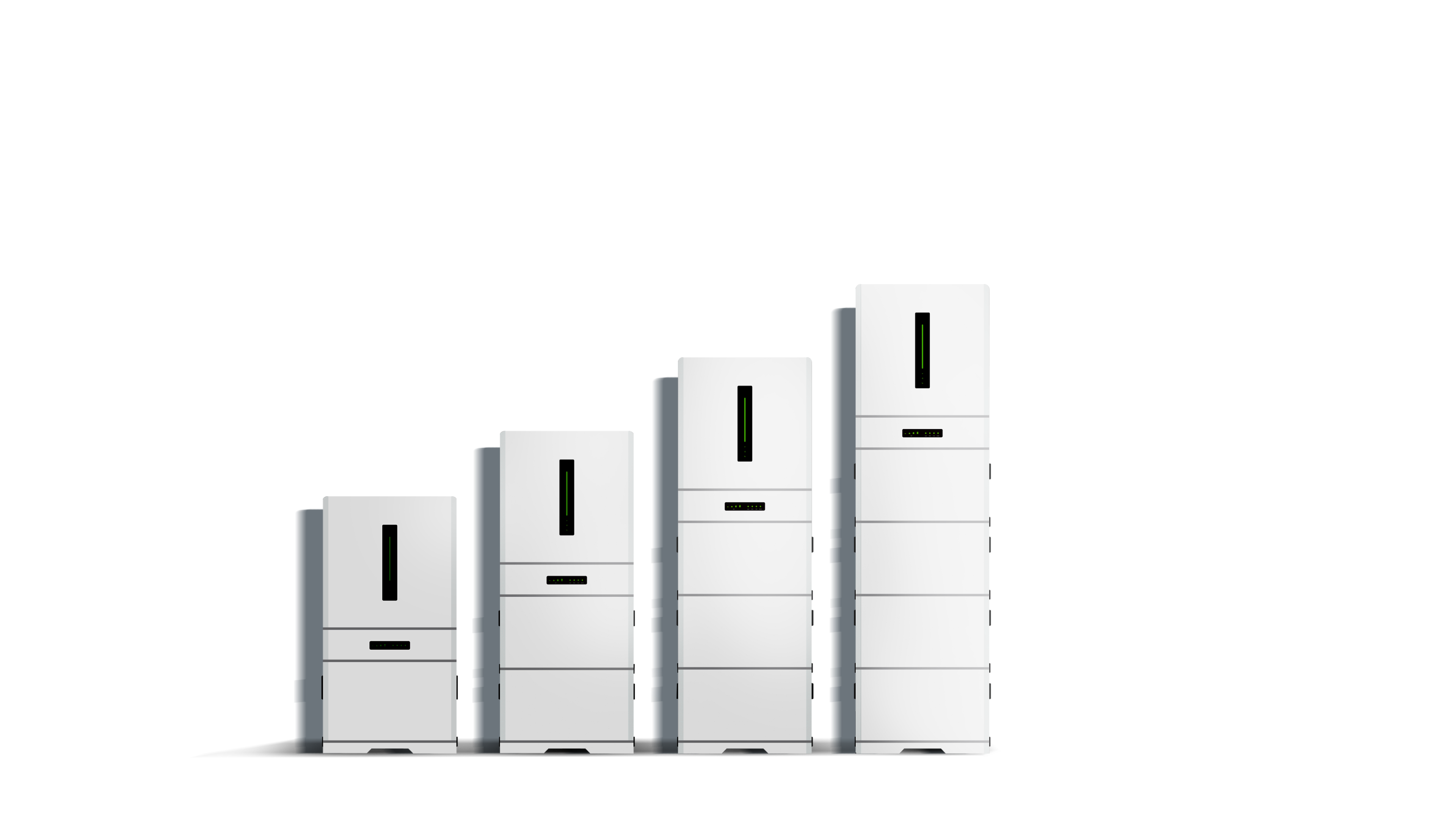

EAHI10/15/20KTH-S&5KWh
Three-Phase Home ESS
Product Advantages
Product Advantages
Technical Specifications
Technical Specifications
| Hybrid inverter specification | EAHI10KTH-S | EAHH15KTH-S | EAHI20KTH-S |
PV input parameter
|
Max. input powe
|
20kW
|
30kW
|
30kW
|
|
Max. input voltage
|
1000Vdc
|
||
|
MPPT voltage range
|
160~950Vdc
|
||
|
Max. input current per MPPT
|
16A/16A
|
16A/32A
|
|
|
Max. short circuit current per MPPT
|
24A/24A
|
24A/48A
|
|
|
Number of input strings per MPPT
|
24A/24A
|
1/2
|
|
Battery input parameter
|
Battery type
|
Lithium battery
|
||
|
Voltage range
|
650~980Vdc
|
||
|
Max. charge/discharge current
|
15.4A/15.4A
|
23.1A/23.1A
|
30.8A/30.8A
|
AC input and output(grid)
|
Max. apparent power of grid
|
15kVA
|
22.5kVA
|
30kVA
|
|
Max. input current
|
21.7A
|
32.6A
|
40A
|
|
Input voltage range
|
320~480Vac
|
||
|
Input frequency range
|
50±5Hz/60±5Hz
|
||
|
Rated output power
|
10kW
|
15kW
|
20kW
|
|
Power factor
|
>99%(0.8 leading~0.8 lagging)
|
||
|
THDI
|
≤3%(@rated power)
|
||
Generator input
|
Max. input power
|
10kW
|
15.2A
|
20kW
|
|
Max. input current
|
15.2A
|
22.8A
|
30.4A
|
AC output parameter(back-up load)
|
Rated output power
|
10kW
|
15kW
|
20kW
|
|
Rated output voltage
|
3/N/PE, 380Vac/400Vac
|
||
|
Rated output frequency
|
50Hz/60Hz
|
||
|
Rated output current
|
22.8A/21.7A
|
||
|
THDV
|
≤3%(linear load)
|
||
|
Switching time
|
≤10ms
|
||
Efficiency
|
Max. efficiency
|
98.2%
|
||
|
MPPT efficiency
|
99.9%
|
||
Others
|
Surge protection
|
DC Type II/AC Type III
|
||
|
Dimensions(WxHxD)(mm)
|
650x640x270mm
|
||
|
Net weight(kg)
|
45
|
||
|
Parallel operation
|
Supports 6 units in parallel connection
|
||
|
Topology
|
Non-isolated
|
||
|
IP rating
|
IP66
|
||
|
Operating temperature
|
-25ºC~+60ºC
|
||
|
Cooling mode
|
Natural cooling
|
Smart cooling
|
|
|
Altitude
|
3000m
|
||
|
Noise level at 1m
|
≤25dB
EAHI10KTH-
|
≤45dB
|
≤50dB
|
|
Standards
|
NC RFG+PTPiREE, VDE 0126, EN50549-1/10, DIN VDE V 0124-100:2020, VDE-AR-N 4105:2018, PPDS, CEI 0-21
IEC/EN 62109-1/-2, IEC62040-1, IEC62477, lEC62619:2022, EN 61000-6-1/-2/-3/-4
|
||
| Model | PDU-GU-Y/F |
Battery distribution box specification
|
Maximum current
|
60A
|
||
|
Voltage range
|
550~1000Vdc
|
||
|
Dimensions(WxHxD)(mm)
|
650x150x270
|
||
|
Net weight(kg)
|
12
|
||
|
IP rating
|
IP66
|
||
|
Fixed base size(WxHxD)(mm)
|
650x80x270
|
||
| Model | EHBS-P5-TH |
Battery specification
|
Battery type
|
LiFePO4
|
||
|
Module capacity
|
5.12kWh
|
||
|
Rated voltage
|
750Vdc
|
||
|
Voltage range
|
600~1000Vdc
|
||
|
Max. charge/discharge current
|
3.4A/5.5A
|
||
|
Communication interfaces
|
CAN/RS485
|
||
|
Dimensions(WxHxD)(mm)
|
650x370x270
|
||
|
Net weight
|
59
|
||
|
Topology
|
High frequency isolation
|
||
|
IP rating
|
IP66
|
||
|
Operating temperature
|
-25ºC~55ºC
|
||
|
Cooling mode/Heating mode
|
Natural cooling/PTC heating
|
||
|
Altitude
|
3000m
|
||
|
Standards
|
IEC/EN 62619 2022, ISO 13849, IEC/EN 62040-1, IEC/EN 62477, IEC62109-1/2, IEC 61000-6-1, EN/IEC 61000-6-3, UN 38.3
|
||
