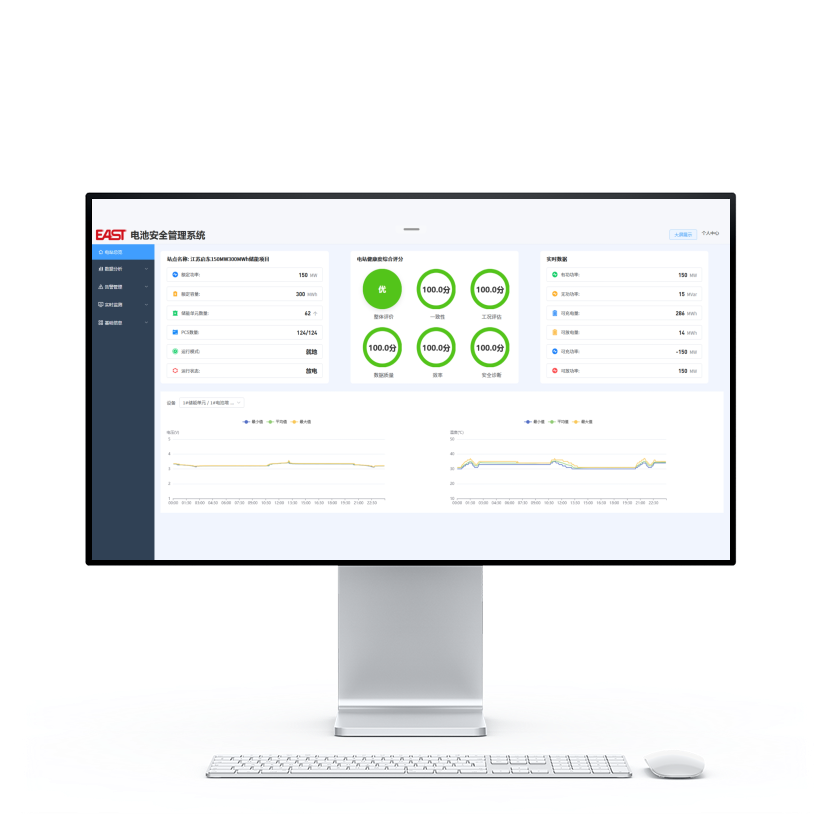

Energy Storage Health Management System
Multi-layer health monitoring for stations, equipment and components. Data-driven analysis of battery consistency, operation status and efficiency enables safety early warning and intelligent diagnosis, realizing a fully digital O&M closed loop to improve the safety, efficiency and service life of energy storage systems.
Consult
Product Advantages
Product Advantages
Technical Specifications
Technical Specifications
| Product Models | EAPHMS-DM266 |
System
| Primary Functions | Multi-dimensional consistency analysis of voltage, temperature, SOC, combined with safety diagnosis and anomaly warning, enables full-equipment monitoring from cells to PCS, power environment and box-type transformers. Data-driven assessment covers station-level health, energy efficiency and reliability. |
Collected Parameters
| Supported Devices | Box-type transformer,PCS,PACK,Cell |
| Acquisition Interval | Default: 15s (configurable) |
Storage Capacity Metrics
| Historical Data Retention Period | ≥2 years |
| Disk Capacity Alarm | 80%(Alarm triggered when remaining storage capacity falls below 80% of the system’s required operating capacity) |
| Real-time Database Capacity |
Analog values ≥ 1.5 million points Status values ≥ 800,000 points |
| Historical Database Storage Capacity |
· Historical curve sampling interval: 1–30 min (adjustable) · Supports second-level data storage · Daily, monthly & annual reports stored for ≥ 2 years · Historical trend curves: ≥ 300 items
|
Communication
| Communication Media | Fiber/Ethernet |
| Network Topology | Bus/Star/Ring topology |
| Communication Media | IEC 60870-5-104, Custom Protocol |
Cabinet
| Dimensions (W×H×D) | 800 mm * 2260 mm * 1000 mm |
