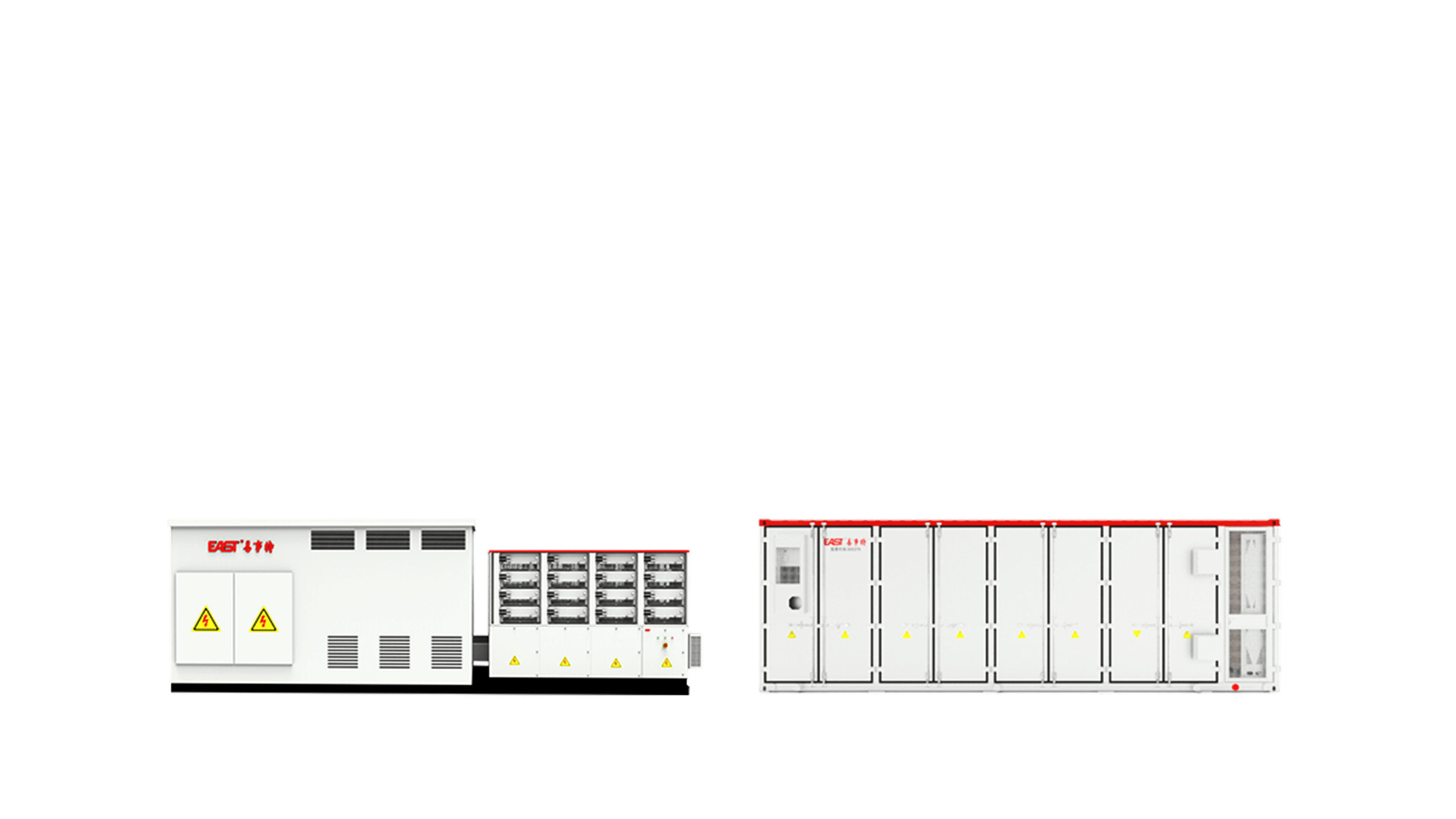

· The string-type energy storage solution enables battery cluster-level management

· It supports a parallel and cascadable layout, reducing single-unit footprint by over 30%

· With a modular design, it ensures convenient and efficient later-stage maintenance and operation

· Core modules feature IP66 high protection and C5 corrosion protection, withstanding various harsh environments

· 250kA short-circuit capacity on the DC side with ms-level breaking capability

· Features intelligent detection of various system faults, as well as detection and protection against thermal runaway

· The product features primary frequency regulation and inertia support functions, flexibly meeting grid operationrequirements

· It supports the IEC61850 protocol and rapid power response capability

· Features high-efficiency and intelligent liquid cooling temperature equalization control, with a temperaturedifference of less than 3°C

· Adopts a three-level topology with a maximum conversion efficiency of 99%

· Enables intelligent automatic fluid replenishment, reducing the need for manual fluid replenishment
